HP Series Pressure Washer

Hot / Cold / Steam Portable Electric Powered Pressure Washer

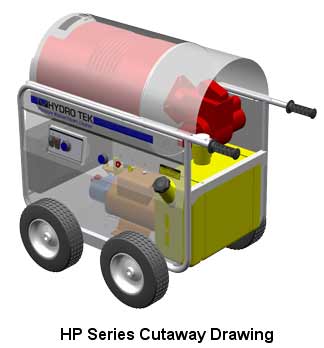

HP Series Hot / Cold / Steam Portable Electric Powered Pressure Washer

Standard Features

High Heat / High Flow System:
The ultimate balance of heat and flow increases your cleaning power providing a consistent superior performance. Uniquely designed with Hydro Tek schedule 80 coils and Auto ignition for peace of mind & ease of operation. High capacity diesel burner with higher temperature rise for faster cleaning.

Stainless Steel Coil Housing and Inner Wrap:
Lifetime corrosion resistance, inside and out - unmatched coil protection, double wall protected to contain the intense heat from the burner providing optimal long life and performance.

Auto Start and Time Delay Shutdown:
Operator has total control over the system from the trigger gun. This added convenience not only saves time and effort, it reduces wear of the pump and produces an energy efficient system that outperforms the traditional manual on/off.

All Stainless Steel Frames and Panels:
Not just decorative flashes, these rugged and durable panels offer lifetime corrosion resistance and protection of your valuable investment from the harshest environments. Keeps your machine looking like new for years to come. Quick connects provide easy removal for full access to all major components and the ultimate in serviceability.

Adjustable Temperature with Steam Setting:
Front mounted controls allows quick and easy adjustments of temperature and steam settings with higher heat than comparable washers for your toughest cleaning applications.

NEMA4 – Water Tight Control Panel:
ETL certified to UL1776 Class 2, for use in wash-down area, exceeding Industry standards. Special Hydro Tek control box features easy to use controls and provides instant access to electronics.

CAT Direct Drive Pump:
These Industrial triplex pumps feature extra service factor to outperform the competition in longevity. Featuring concentrically bored & polished, graphite impregnated ceramic plungers with advanced seal design to meet our ultimate standard, yours.

8 gallon Diesel Tank with filtration:
Heavy Duty "roto-molded" rust free fuel tank with water separating fuel filter to protect against contaminated fuel. Extended run time (up to 5 hrs) eliminates interruptions.

More Standard Features:
• Full Pressure Inlet Soap Injection
• Quick Release Nozzles
• Heavy Duty Industrial Motor with standard thermal overload protection
• Top Quality Unloader offers operator full pressure and flow by pulling the trigger
• Adjustable temperature up to 250°F with steam setting
• Burst Disk Technology for the “ultimate” in operator safety
• Heavy Duty Hose 50’, 250° Rated
• Adjustable Pressure Wand

Specifications:
Model PSI GPM Temp. HP Voltage
HP20005E8 2000 4.2 250 F 6.5 208/230v - 1ph 30a
HP22005E2 2200 4.2 250 F 6.5 230v - 1ph 27a
HP22005E3 2200 4.3 250 F 7.5 230v - 3ph 21a
HP22005E4 2200 4.2 250 F 6.5 460v - 1ph 10a
HP30004E2 3000 3.9 250 F 8 208/230v - 1ph 34a
HP30005E3 3000 4.8 250 F 10 230v - 3ph 28a
HP30005E4 3000 4.8 250 F 10 460v - 3ph 13a
HP35005E3 3500 4.3 250 F 10 230v - 3ph 28a
HP35005E4 3500 4.3 250 F 10 460v - 3ph 13a

Specifications may vary, consult factory for custom models

Optional Features & Accessories:
• Stainless Steel Hose Reel with lifetime stainless steel corrosion resistance
• Wheel Kits 10” or 12”
• Turbo Nozzle
• Hydro Twister® concrete cleaner
• Wet Sandblast Assembly,
• Hose and Wand Extension
