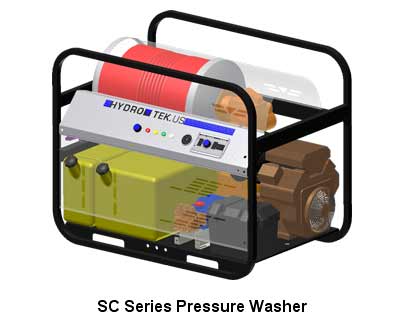

SC Series Mobile Wash Skid

Self Contained Hot / Cold / Steam High Pressure Washers
SC Series

Standard Features

Rugged "Pro-tect-it" Frame:
The ultimate in protection. Hydro Tek’s unique "Pro-tect-it" frame of 1 ¼", heavy gauge steel, with durable electrostatically applied powder coat finish. The built-in lifting eyes gives you greater flexibility and protection when moving the system.

NEMA4- Water Tight Control Panel:
ETL certified to UL1776 Class 2, for use in wash-down area, exceeding Industry standards. Special Hydro Tek control box features easy to use controls and provides instant access to electronics. Standard diagnostic indicators, including an hour meter and pressure gauge to monitor system use, ensures optimal system performance.

110V Burners with on-board 3000 watt generator:
Provides automatic, high intensity ignition and reliable power for the heating system. Supplemental power outlets from the generator (GFCI Protected) offers the operator additional electrical power to run lights or accessories.

Stainless Steel Panels:
Not just decorative flashes, these rugged and durable panels offer lifetime corrosion resistance and protection of your valuable investment from the harshest environments. Keeps your machine looking like new for years to come. Quick connects provide easy removal for full access to all major components and the ultimate in serviceability.

Heating System:
The ultimate balance of power, efficiency and corrosion resistance in this uniquely designed Hydro Tek schedule 80 coil. Rugged construction suitable for ‘over the road use’ works in harmony with the double wall stainless steel, ceramic insulated housing. Virtually indestructible construction and industry leading performance-years of uninterrupted, worry free service.

Total Relief Unloader:
Flow sensitive unloader allows pressure to build up gradually as trigger gun is activated eliminating “pressure spikes” and improving operator control and safety. When the gun is released, entire system pressure is relieved, enhancing the life of the system and eliminating engine starting problems associated with trapped pressure.

8 Gallon Gas Tank/ 18 Gallon Diesel Tank:
Heavy Duty “roto-molded” rust free fuel tanks with water separating fuel filter to protect against contaminated fuel. Extended run time (up to 8 hrs.) eliminates interruptions.

More Standard Features:
• Quick release nozzles
• Industrial gasoline engines with efficient OHV design, feature heavy duty steel cylinder liners for industrial strength power
• Durable diesel engines available for enhanced longevity and efficient operation
• Burst disc technology for operator safety
• Adjustable temperature up to 250° F with steam setting
• Heavy duty hose 50’ 250° F rated
• "Q" models are extra quiet, 80 db at 25’

Specifications:
Model PSI GPM Temp. Pump Engine
SC30004VG 3000 4.0 250 F General 479cc Vanguard Gas
SC30008HAF 3000 7.8/2 200 F General 688cc Honda Gas
SC35005VH 3500 4.8 250 F AR 570cc Vanguard Gas
SC30005VG 3500 4.7 250 F General 570cc Vanguard Gas
SC35005VC 3500 4.5 250 F CAT 570cc Vanguard Gas
SC35006VG 3500 5.5 250 F General 627cc Vanguard Gas
SC35006HG 3500 5.5 250 F General 688cc Honda Gas
SC35008HAF* 3500 7.7/2 200 F General 688cc Honda Gas
SC35008KAF* 3500 7.7/2 200 F General 725cc Kohler Gas
SC40005VH 4000 4.8 250 F AR 627cc Vanguard Gas
SC30004D12 (12V) 3000 4.0 250 F General 599cc Kubota Diesel
SC30006D12 (12V) 3000 5.5 200 F General 599cc Kubota Diesel
SC30008DAF* 300 7.6/2 200 F General 719cc Kubota Diesel
SC35006D12 (12V) 3500 5.5 200 F General 599cc Kubota Diesel
SC35006DAF 3500 5.5 200 F General 599cc Kubota Diesel
SC36004D12Q (12V) 3600 4.0 250 F General 667cc Hatz Diesel

Specifications may vary, consult factory for custom models
* Includes two Guns, Wands and Hoses

Optional Features & Accessories
• Stainless Steel Frame - long life and corrosion resistance for harsh environements
• Turbo Nozzle
• Hydro Twister ®- deck and concrete cleaner
• Wet sandblast assembly
• Hose and wand extensions
• Stainless steel hose reel with lifetime stainless steel corrosion resistance
• Wheel Kit with various wheel combinations
• Trailers & Tank Skid Systems
• Hydro Vacuum® System: Wash - Contain - Recycle.
• The SC series generator can power the Hydro Vacuum ® to capture, filter and recycle used wash water, saving time, money and the environment.


Technical Information
SC30004VG Tek Sheet
SC30008HAF Tek Sheet
SC35005VH Tek Sheet
SC35005VG Tek Sheet
SC35005VC Tek Sheet
SC35006VG Tek Sheet
SC35006HG Tek Sheet
SC35008HAF Tek Sheet
SC35008KAF Tek Sheet
SC40005VH Tek Sheet
SC30004D12 Tek Sheet
SC30006D12 Tek Sheet
SC30008DAF Tek Sheet
SC35006D12 Tek Sheet
SC35006DAF Tek Sheet
SC36004D12Q Tek Sheet
