SCU Series Mobile Wash Skid

Self Contained Hot / Cold / Steam High Pressure Washers

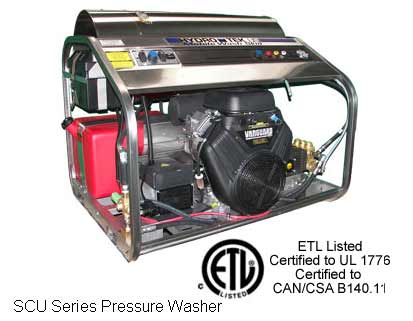

SCU Series

Experience ultimate duty cleaning power. The SCU Series has the reserve horsepower and heat rise to get the job done faster, with less soap and reduced noise pollution. It has a rust proof, stainless steel frame and long lasting, quality components to withstand the daily use that a professional demands. The built-in generator has additional capacity to run lights or water recycle accessories and you can also carry water with the optional ProTowWash ® trailer for total self-containment.

Standard Features

Rust Proof - Stainless Steel Frame, Panels, and Coil Wrap:
The Ultimate in protection, with a stainless steel lifetime guarantee. The rugged and durable frame and panels offer protection of your valuable investment from the harshest environments. Keeps your machine looking like new for years to come. Lifting eyes and 4-way forklift access are integrated into frame along with an open design for service access.

NEMA4- Water Tight Control Panel:
ETL certified to UL1776 Class 2, for use in wash-down area, exceeding Industry standards. Special Hydro Tek control box features easy to use controls and provides instant access to electronics. Standard diagnostic indicators, including an hour meter and pressure gauge to monitor system use, ensures optimal system performance.

110V Burners with on-board 2900 watt generator:
Provides automatic, high intensity ignition and reliable power for the heating system. Supplemental power outlets from the generator (GFCI Protected) offers the operator additional electrical power to run lights or accessories.

Burner Output:
Super duty burner delivers 441,000 to 614,000 BTU’s with the highest heating capacity in its class.

Heating System:
The Ultimate balance of power, efficiency and corrosion resistance in this uniquely designed Hydro Tek schedule 80 coil. Rugged construction suitable for ‘over the road use’ works in harmony with the double wall stainless steel, ceramic insulated housing. Virtually indestructible construction and industry leading performance-years of uninterrupted, worry free service.

Industrial Engines:
Efficient OHV gas engines with electric key start, low oil shutdown, and heavy duty steel cylinder liners for industrial strength power.

Total Relief Unloader:
Flow sensitive unloader allows pressure to build up gradually as trigger gun is activated eliminating “pressure spikes” and improving operator control and safety. When the gun is released, entire system pressure is relieved, enhancing the life of the system and eliminating engine starting problems associated with trapped pressure. Balanced regulating unloader on 2-Gun systems.

Belt Driven Pump:
These industrial pumps feature high torque, low RPM drive- cooler, quieter, continuous duty performance.

18 Gallon Gas Tank / 18 Gallon Diesel Tank:
Extra large, heavy duty "roto-molded" rust free fuel tanks with water separating fuel filter to protect against contaminated fuel. Large fuel tanks extend run time, eliminating interruptions to refuel.

More Standard Features:
• Quick release nozzles
• Burst disc technology for operator safety
• Panel mounted adjustable thermostat
• Heavy duty hose 50’ 5800 PSI, 2500 rated
• "Q" models are extra quiet, 80 db at 25’
• 4 gallon float tank with double inlet filtration, includes 3 Way ballvalve for connection to a bulk water supply tank. (9gpm high flow machines require a bulk tank for water supply, therefore do not have a float tank assembly)

  • Specifications:
    Model PSI GPM Temp. HP Engine
    SCU30009KAF* 3000 8.7 / 2 200 F 725cc Kohler Gas
    SCU30009HAF* 3000 8.7 / 2 200 F 688cc Honda Gas
    SCU32007VG 3200 6.5 250 F 627cc Vanguard Gas
    SCU35006HQ 3500 5.6 250 F 688 cc Honda Gas
    SCU35009VAF* 3500 8.7 / 2 200 F 896cc Vanguard Gas

    * can be run as a two gun system

    Optional Features & Accessories
    • Turbo Nozzle
    • Hydro Twister ®- deck and concrete cleaner
    • Wet sandblast assembly
    • Hose and wand extensions
    • Stainless steel hose reel with lifetime stainless steel corrosion resistance
    • Wheel Kit with various wheel combinations
    • Trailers & Tank Skid Systems
    • Hydro Vacuum® System: Wash - Contain - Recycle.
    • The SC series generator can power the Hydro Vacuum ® to capture, filter and recycle used wash water, saving time, money and the environment.


    Technical Information
    SCU30009KAF Tek Sheet
    SCU30009KAF Tek Sheet
    SCU330009HAF Tek Sheet
    SCU32007VG Tek Sheet
    SCU35006HQ Tek Sheet
    SCU35009VAF Tek Sheet
    SCU Cutaway Drawing
